MA-XL1 users can record and upload interactive content,
while collaborating with classrooms across multiple remote
locations, maintaining full interactivity with all
students.
- 5,200 ANSI Lumens white/color output
- WUXGA 1920 x 1200 Resolution
- 1.4 – 2.3 : 1
-
Mechanical - Form Factor :
Standalone / Rack Mount
-
Weight - w/o Rack Mount Bracket
: Approx. 3.0kg (6.6lbs.)
-
Weight - with Rack Mount Bracket
: Approx. 3.1kg (6.8lbs.)
-
Dimension - w/o Rack Mount Bracket
: 430mm × 206mm × 60mm (16.9" ×
8.1" × 2.4")
-
External Storage : Yes via USB
Type A
-
Storage - Export Files : Mixed ×
1, Independent × 3
- Power : DC 24V/2.5A
-
Power Consumption(Max.) :
60W(Max.)
-
Operating Temperature : 0-40°C
-
Operating Humidity : 10-90%RH

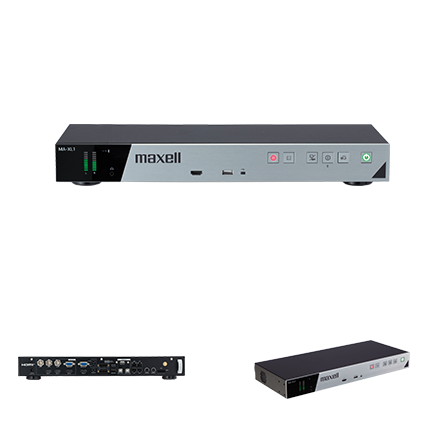

Lecture Capture Collaboration Station
Data Sheet
