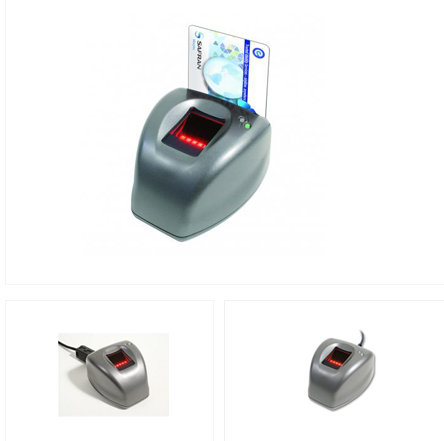

Nedo Corporation offers the MorphoSmart 300 Series, a compact and high-performance fingerprint reader line designed for secure biometric authentication. It features a large 500 dpi sensor, fast processing (under 0.7 s), and storage for up to 5,000 users. The series includes models with fake-finger detection, smartcard support, and match-on-device or match-on-card capabilities. Certified to FBI PIV IQS, FIPS 201, and Common Criteria standards, it ensures top-level security and accuracy. With cross-platform SDK support, it's easy to integrate into various systems. Ideal for government, banking, and access control applications.
Features at a Glance:
-
Excellent fingerprint capture (23*23mm sensing area) and
processing performances
-
All-in-one: integrates sensor + embedded feature
extractor & matcher + internal user database
-
Large internal database capacity (up to 5000 users)
- High accuracy
-
Patented Fake Finger Detection in option (MSO 301):
Common Criteria certified by the BSI
-
Tailored for the registration of young or elderly people
and manual laborers
- FBI PIV IQS certification on the whole range
-
Multiple template & image formats (ISO 19794-2,
ANSI/INCITS 378, Proprietary ; ISO 19794-4, WSQ
compressed in option…
-
Security features to protect the communication channel
between host and device (integrity check, data
encryption)
-
Smartcard reader in option for Match-On-Card on MSO 350
& 351 (FIPS 210 certified)
Morpho Smart 300 Series
Data Sheet
