GNSS Reference Receiver in Pakistan - Sokkia GNR5 GNSS System


GNSS Reference Receiver in Pakistan - Sokkia GNR5 GNSS System


The GNR5 is a GNSS reference receiver for many types of applications among other GNSS infrastructure network receivers, permanent reference stations, field (mobile) base stations and reference stations for scientific analysis. The GNR5 is capable of tracking all GNSS constellation including GPS, GLONASS, Beidou, Galileo, QZSS as well as SBAS using 452-Channels with optimized satellite tracking technology. In short, the GNR-5 has a rugged and integrated design with longer operating time and high reliability. The GNR5 supports an extended communication options with an advanced web-server functionality.`


  • Number of Channels   :   226 channels
  • Antenna Type   :   External
  • Memory   :   Removable SD/SDHC memory card up to 32 GB and USB Host support for external USB mass storage devices
  • Data Update/Output Rate   :   1 Hz - 100 Hz selectable
  • Cellular Communications   :   Integrated HSPA+
  • Web User Interface   :   Secure device access and configuration via Ethernet and Wi-Fi connectivity
  • User Interface   :   Multi-function power button supporting data logging and factory reset operations
  • Dimensions (w x d x h)   :   150 x 200 x 60 mm
  • Weight   :   Less than 2 kg
  • External Power Input   :   Nominal 12 VDC (external power input range 9V - 28VDC)
  • Operating Temperature   :   -40°C to 80°C with external power / -30°C to 65°C with integrated batteries
  • Dust and Water Protection   :   IP67

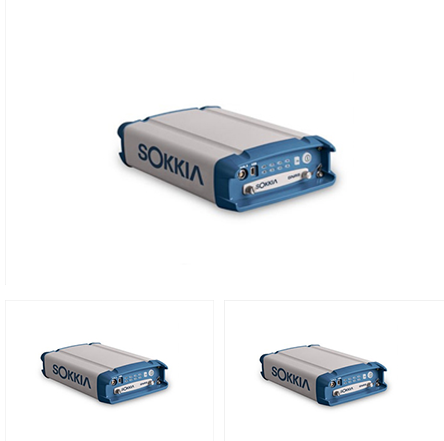

Sokkia GNR-5

Data Sheet
