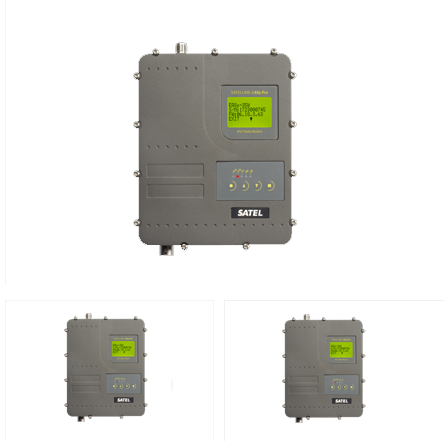

SATELLINE-EASy Pro is an IP67 classified UHF radio modem with a high power transmitter, a wide 70 MHz tuning range and selectable channel spacing. It is particularly well suited for outdoor use under varying weather conditions, e.g. land surveying. Due to the high transmitting power, connection distances of up to 80 kilometers can be covered. In the SATELLINE-EASy Pro the error rate is minimized by means of advance checking and correction of the data packets. In Forward Error Correction (FEC), the data packets are split in several blocks. The radio modem adds correction information inside the blocks during transmission. SATELLINE-EASy Pro features embedded Message Routing software, which takes care of routing messages across a radio modem network automatically after proper settings have been made. Communication is completely transparent, which makes Message Routing directly compatible with most user protocols. SATELLINE radio modem networks are flexible, easy to expand and they can cover a wide variety of solutions from simple point-to-point connections to large networks consisting of hundreds of modems. Setting up a local data transfer network is quick and cost effective.


  • Frequency   :   403 - 473 MHz
  • Tuning Range   :   70 MHz
  • Channel Spacing   :   12.5 / 20 / 25 kHz (SW selectable)
  • Communication Mode   :   Half-Duplex
  • Carrier Power   :   10, 20, 25 or 35 W / 50 ohm (Default) 5, 10, 20 or 25 W / 50 ohm (Option *)
  • Sensitivity   :   -114 dBm (BER , 10 E-3) ***
  • Interface Connector   :   Waterproof IP67, 8-pin ODU
  • Data Speed of RS Interface   :   300 – 38400 bps
  • Data Speed of Radio Interface   :   19200 bps (25 kHz)
  • Data Format   :   Asynchronous RS-232
  • Antenna Connector   :   TNC, 50 ohm, female
  • Construction   :   Aluminium Enclosure
  • Size H x W x D   :   189 x 138 x 71 mm (with connectors)
  • Weight   :   1420 g
  • IP Classification   :   P67 (NEMA 6)
