Wing Gate turnstile in Karachi

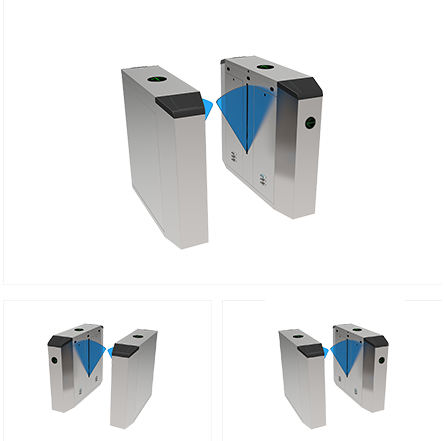

Wing Gate turnstile in Karachi - Cloud CT502


All the gates models are space efficient security barriers,with a compact design,yet offer sufficient spaces to integrate any access control system.They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries.Interfaced with a PC through a RS232(RS485,TCP-IP)line.The unique swing arm features provide a fail-safe safety solution in caxse of an any emergrncy or power failure,providing egress in case of crisis evcuation. Durability with minimal maintenance means years and Millions of tr0uble free passages.The tursntile creates a secure envitonment in. for example a reception area. Our tursntile are used in different applications including stadiums and arenas ,perimeter and interior security,recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.


  • Use of RFID IC cards.IDcards,Baroode or magnet­ic cards as automatic Identification system and achieve access attendance,fees or function.
  • A direction Indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
  • Semi-auto mode;After reading card the passenger pushes the arm by hand until he goes through Iha barriers and the arm arrives in home position.
  • Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will auto­ matically rotate forward by motor power until the arm arrives in home position.
  • Pure mechanical mode: Thepassengerpushes Iha arm by hand unbl hegoes through the barriers.
  • Single or bi.direCtional function in mechanical and electrical versions.
  • Au1Cmatic reset of banier arms after each passage.
  • Cable or wireless remote contrOI panel key override control for emergency Situations. Automatically arm dropdown when power off or emergency.
  • Adjustable time out delay.

CT502

Data Sheet
